China high quality hydraulic winch maufacturer



We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.

Company introduction
We are the group company in China, the registered capacity is 6,000,000 and the factory area is about 6000sqm. Staffed with 150 employees, including 10 engineers.

The products are widely used inengineering machinery, ship-, petroleum-, mining industry, metallurgical machinery, light industry, agriculture, enviroment.

Now we are stepping into the international market, our products are being exported toGermany, USA, CANADA, ITALY, NETHERLAND, KOREAM, SINGAPORE, TURKEY, AUSTRALIA, INDIA, INDONESIA and others.

Introduction of hydraulic winch AF series
Custom Built Hydraulic Winch with High Speed

For the winch in the picture, it is our AF series hydraulic winch, which is widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.

Special features of winch:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.
For the folowing specification in the table, it is for your reference. We can also manufacture the winch with pull force up to 60,000kgs based on your requirements.


Specification of hydraulic winch:

ModelPull Force (KN)Rope Speed (m/min)Diameter of rope (mm)Capacity of rope (m)Working pressures diff. (Mpa)Flow Rate (L/min)
1st layer

top layer

AF570057004500601610725160
AF770077006000521811825180
AF960096007500432011825180
AF12800128009800432411827220
AF150001500012800392411025220
AF18500185001460085.32816227380
AF25000250001950048.13016227380
AF300003000023000323216930380
AF450004500034700324216930380

Note: the above specification of winch are only for your reference. We can also design and manufacture the winch based on your requirements for different applications.



Contact Information:

Contact: Cathy



Tel: 0086-134 8664 5746

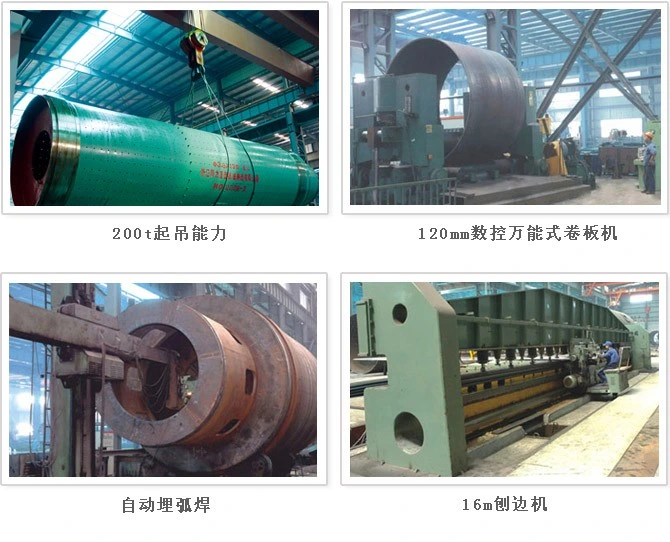

Factory overview
