Compact marine hydraulic towing winch with CCS BV certificate
Light duty 10kN hydraulic winch for sale --- Introduction
Hydraulic winches, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are
divided into: built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic
winch,

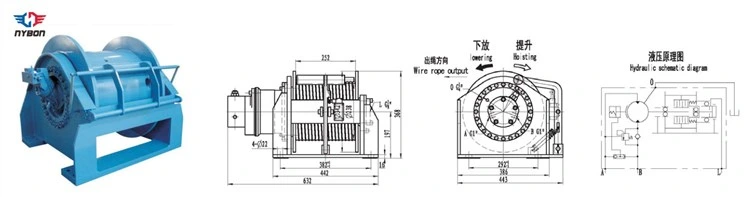

Light duty 10kN hydraulic winch for sale --- Main structures
hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation
bracket and other combinations.
Light duty 10kN hydraulic winch for sale --- Application
Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of
the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor
tensioners, construction machinery Lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry
cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting
equipment Such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic
piles, and more.
Light duty 10kN hydraulic winch for sale ---Features
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and
other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.
| Model | Pulling Force (kN) | Rope Speed | Total Displacement (ml/r) | Working pressure | Diameter of Rope (mm) | Rope capacity | Motor Type |
| NY2.5-8-65-9 | 8 | 0-40 | 553 | 13 | 9 | 65 | BM3-100F120101 |
| NY2.5-10-60-10 | 10 | 0-40 | 695 | 13 | 10 | 60 | BM3-125F120101 |
| NY2.5-12-60-10 | 12 | 0-35 | 884 | 12.5 | 10 | 60 | BM3-160F120101 |
| NY2.5-15-55-11 | 15 | 0-30 | 1105 | 12.5 | 11 | 55 | BM3-200F120101 |
| NY2.5-18-50-12 | 18 | 0-25 | 1389 | 12 | 12 | 50 | BM3-250F120101 |
| NY2.5-20-50-12 | 20 | 0-20 | 1769 | 10.5 | 12 | 50 | BM3-300F120101 |
| NY3-30-65-15 | 30 | 0-35 | 2125 | 15.9 | 15 | 65 | HS2-420D51 |
| NY3-40-60-16 | 40 | 0-35 | 2711.5 | 16.4 | 16 | 60 | HS2-500D51 |
| NY4-50-70-20 | 50 | 0-40 | 4365 | 16.3 | 20 | 70 | HS3-900D240101 |
| NY4-60-68-21.5 | 60 | 0-40 | 5428.5 | 16 | 21.5 | 68 | HS3-1000D240101 |
| NY5-80-100-24 | 80 | 0-40 | 9080 | 15.6 | 24 | 100 | HS3-1800D240101 |
| NY5-100-90-28 | 100 | 0-40 | 11039 | 16 | 28 | 90 | HS3-2000D240101 |
| NY7-200-150-40 | 200 | 0-25 | 27434 | 17.8 | 40 | 150 | HS8-5000D480101 |
| NY79-300-155-44 | 300 | 0-16 | 57776 | 17 | 44 | 155 | HS7-3600D480101 |
| NY79-350-150-46 | 350 | 0-16 | 68768 | 16.8 | 46 | 150 | HS7-4300D480101 |
| NY79-400-145-48 | 400 | 0-16 | 79808 | 16.5 | 48 | 145 | HS7-5000D480101 |
| All of the paramters can be customized based on your requirement | |||||||
Nybon is a group of Lifting Business with Rich Experience, sercving abroad range of customers,
including factory lifting work, manufacturing and process industries, shipyards, ports and terminals.
Regardless of your lifting needs, Nybon is committed to providing you with lifting equipment and
services that increase the value and effectiveness of your business
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
