Introduction of Hydraulic Double drum trawl winch
We are manufacturer of producing boat winch, like: trawl winch, mooring winch, towing winch, anchor windlass.
According to your detailed requirements, we could customize winch for you. And provide drawing for you to check.
Application: Marine,Ocean,offshore ,harbor,etc.
Description:
1. Drive:Electric/Hydraulic /Manual Driven
2. Configuration:Single/Double Drums
3. Drum Rope:P.P Rope or SWR
4. Rated Pull:1 Tones To 350 Tones (1st Layer)
5. Brake Holding:Up To 450 Tonnes ( Static, 1st Layer)
6. Wire Speed:Complying to ISO/Classification Society rules
7. Clutch:Manual /Hydraulic Operated Jaw Clutch
8. Brake:manual/Hydraulic Released Band Brake
9. Control:Local Control Console and/or remote Control Panel
spooling device is optional
Our Advantages:
• Customized design for different clients.
• Rich experience in manufacturing and overseas market
• Certification: ABS, GL, LR, BV, NK,DNV, KR,CCS,etc..
Parameter of Hydraulic Double drum trawl winch

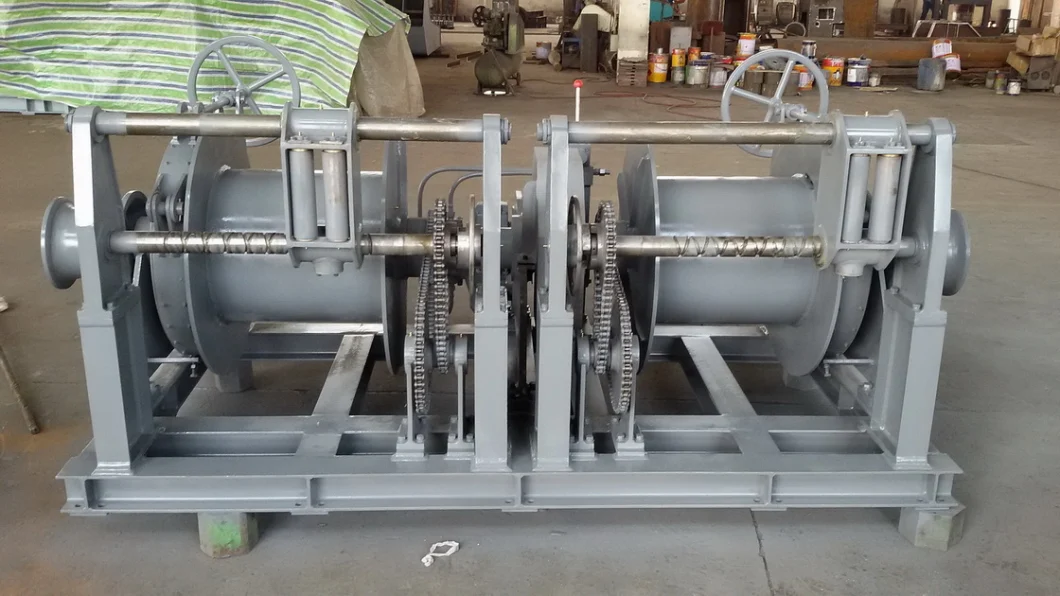

Images of Hydraulic Double drum trawl winch
Power pack ( Hydraulic station)
We are manufacturer of producing boat winch, like: trawl winch, mooring winch, towing winch, anchor windlass.
According to your detailed requirements, we could customize winch for you. And provide drawing for you to check.
Application: Marine,Ocean,offshore ,harbor,etc.
Description:
1. Drive:Electric/Hydraulic /Manual Driven
2. Configuration:Single/Double Drums
3. Drum Rope:P.P Rope or SWR
4. Rated Pull:1 Tones To 350 Tones (1st Layer)
5. Brake Holding:Up To 450 Tonnes ( Static, 1st Layer)
6. Wire Speed:Complying to ISO/Classification Society rules
7. Clutch:Manual /Hydraulic Operated Jaw Clutch
8. Brake:manual/Hydraulic Released Band Brake
9. Control:Local Control Console and/or remote Control Panel
spooling device is optional
Our Advantages:
• Customized design for different clients.
• Rich experience in manufacturing and overseas market
• Certification: ABS, GL, LR, BV, NK,DNV, KR,CCS,etc..
Parameter of Hydraulic Double drum trawl winch
1.Drum Part | |
Rated Load | 2* 15KN (1st layer, each drum 15KN) |
Rated speed | 30m/min (1st layer) |
Drum wire rope | 12* 600m(12 layers) |
Holding load | 2* 45KN(1st layer, each drum 45KN) |
Band brake | Manual operated |
Clutch | Manual operated jaw clutch |
2.Hydraulic motor | |
Working pressure | 13.5Mpa |
Images of Hydraulic Double drum trawl winch
Power pack ( Hydraulic station)
