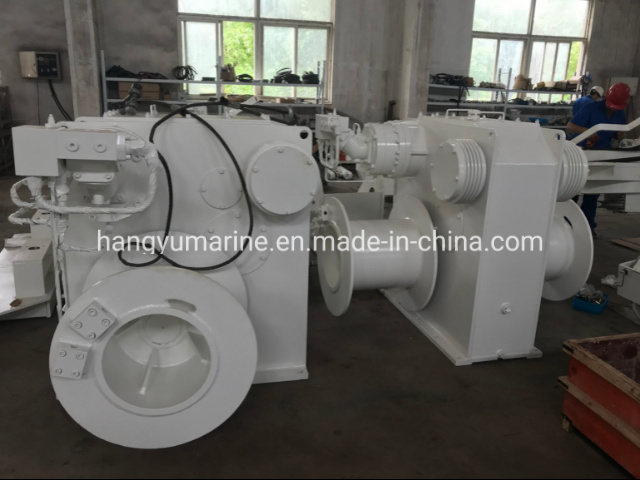

Hydraulic Pressure Marine Electric Windlass Mooring Winch
The marine hydraulic windlass Mooring Winch is mostly drived by hydraulic pressure. Hydraulic pump provide motives for the system, promotes the hydraulic motor running, and then passes to the pinion gear which installed on motors axle end.
The bull gear connect with principal axis, principal axis running promote gypsy wheel through hand-operated proportional valve to control hydraulic motors positive and reverse rotation, speed-up and speed-down, accomplish the work of drop and weigh anchor.
Its one side equipped with a warping barrel, increase greater convenience for ship to moor and dock.
Electric combined windlass mooring winch: Horizontal Windlass; Vertical Windlass
Specification of Marine Mooring Winch
slow/fast winch from 3ton -- 50ton is available.
Marine Electric Windlass ,Mooring Winch are custom-made products as per the request.
Pls contact us talk about details if you are interested in Winch, Windlass.
The marine hydraulic windlass Mooring Winch is mostly drived by hydraulic pressure. Hydraulic pump provide motives for the system, promotes the hydraulic motor running, and then passes to the pinion gear which installed on motors axle end.
The bull gear connect with principal axis, principal axis running promote gypsy wheel through hand-operated proportional valve to control hydraulic motors positive and reverse rotation, speed-up and speed-down, accomplish the work of drop and weigh anchor.
Its one side equipped with a warping barrel, increase greater convenience for ship to moor and dock.
Electric combined windlass mooring winch: Horizontal Windlass; Vertical Windlass
Specification of Marine Mooring Winch
Model | 5ton electric towing winch | 5ton electric winch |
| winch way | towing winch | auto winch |
| wire rope speed | 28m/min | 28m/min |
| motor power | 30kw, soft start | 30kw, soft start |
| wire rope dia | 22mm | 22mm |
slow/fast winch from 3ton -- 50ton is available.
Specification | 1000kN Hydraulic Marine winch & Towing Winch |
| Double drums in waterfall arrangement.Auto spooling device for towing. | |
| Towing | Upper drum |
| Rated pull & Speed | 1000kN at 0~6 m/min(1st layer) |
| Capacity of the rope | 750m |
| Dia of steel wire rope | 48mm |
| Brake holding | 1500kN(1st layer),band type,Hydraulic operated with manual release(safe brake) |
| Clutch | Hydraulic claw clutch |
| Hydraulic motor | Staffa |
| Anchoring | Under Drum |
| Rated pull & Speed | 1000kN at 0~6 m/min(1st layer) |
| Capacity of the rope | 750m |
| Dia of steel wire rope | 48mm |
| Brake holding | 1500kN(1st layer),band type,Hydraulic operated with manual release(safe brake) |
| Clutch | Hydraulic claw clutch |
| Hydraulic motor | Staffa |
| Power pack | Electro-Hydraulic power pack with Kawasaki pumps. |
| Control | local controls stand and drop-in panel at remote wheelhouse control |
| Class | ABS,CONSULTING, BV, CCS, etc. |
Marine Electric Windlass ,Mooring Winch are custom-made products as per the request.
Pls contact us talk about details if you are interested in Winch, Windlass.
