COMPANY PROFILE:
Yangzhou Jushen Ropoe Co.,Ltd was recombined and founded in may 2005 with registered capital of USD five million and actual investment USD nine million totally, it covers an area of 15000 square meters for whole manufacturer, there are 69 staffa in the company.
Our factory supply UHMWPE and Spectra1000 ropes to almost winch OEM factories in China. We also have cooperated with more famous winch brands/companies directly. We could according each client's requirements and never stop qualify improving.
Produce introduce:

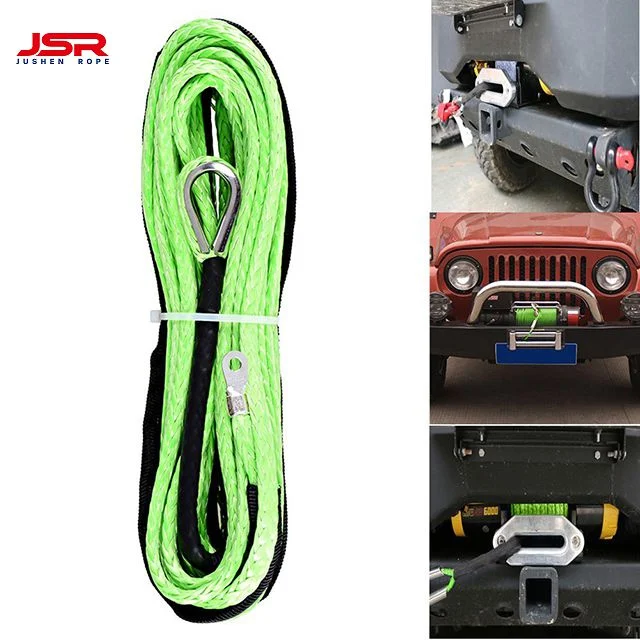

Winch rope is a fiber with a high strength per weight ratio and low stretch characteristics.
It has very good fatigue and abrasion properties.
Also good resistance to axial compression, a low coefficient of friction and good abrasion resistance.
1.Material: 100% uhmwpe or Spectra1000
2.Diameter: 3/16'',1/4'',5/16'',3/8'',1/2''
3.Chemical Resistane
4.Soft and Better Bending
5.Rope end of end nose, heat cut, end lock, tug, eye loops and head of stainless steel tube, thimble, hook, eye loops for you choose or accroding you need production.
6.Various color
Other related products in our factory
soft shackle, recovery rope, tow strap, nylon strap, cargo net.
PRODUCT FEATURES:
• Safer than steel wire rope
• Stronger than steel wire rope
• Extremely lightweight makes it easy to use
• Floats in water
• Torque-free
• No more cut hands from wire splinters or burrs
• Will not kink like steel wire rope
• Will not rust
Packing: WRAPPED IN HDPE CLOTH.
Delivery time: 25 days after deposit received.
Application:
Winch line in the ATV/SUV/offroad car
truck/pulling line in the truck
anchor line/dock line for the yacht/sailing boat.
Certificate:
Yangzhou Jushen Ropoe Co.,Ltd was recombined and founded in may 2005 with registered capital of USD five million and actual investment USD nine million totally, it covers an area of 15000 square meters for whole manufacturer, there are 69 staffa in the company.
Our factory supply UHMWPE and Spectra1000 ropes to almost winch OEM factories in China. We also have cooperated with more famous winch brands/companies directly. We could according each client's requirements and never stop qualify improving.
Produce introduce:
Winch rope is a fiber with a high strength per weight ratio and low stretch characteristics.
It has very good fatigue and abrasion properties.
Also good resistance to axial compression, a low coefficient of friction and good abrasion resistance.
1.Material: 100% uhmwpe or Spectra1000
2.Diameter: 3/16'',1/4'',5/16'',3/8'',1/2''
3.Chemical Resistane
4.Soft and Better Bending
5.Rope end of end nose, heat cut, end lock, tug, eye loops and head of stainless steel tube, thimble, hook, eye loops for you choose or accroding you need production.
6.Various color
Other related products in our factory
soft shackle, recovery rope, tow strap, nylon strap, cargo net.
PRODUCT FEATURES:
• Safer than steel wire rope
• Stronger than steel wire rope
• Extremely lightweight makes it easy to use
• Floats in water
• Torque-free
• No more cut hands from wire splinters or burrs
• Will not kink like steel wire rope
• Will not rust
| Size | Linear density | Weight | Breaking strength | ||||
| BS(Yarns T/S-41g/d) | BS(Yarns T/S-32g/d) | ||||||
| Cir(inch) | Dia(mm) | ktex | 220m(kg) | ton | kN | ton | kN |
| 1/2 | 4 | 10 | 2.2 | 1.84 | 18 | 1.33 | 13 |
| 3/4 | 6 | 23 | 5.2 | 3.88 | 38 | 3.27 | 32 |
| 1 | 8 | 39 | 8.9 | 5.72 | 56 | 4.60 | 45 |
| 1-1/4 | 10 | 61 | 14.0 | 9.10 | 89 | 7.35 | 72 |
| 1-1/2 | 12 | 87 | 20.0 | 15.10 | 148 | 10.20 | 100 |
| 1-3/4 | 14 | 117 | 26.0 | 18.60 | 182 | 15.30 | 150 |
| 2 | 16 | 151 | 34.0 | 24.50 | 240 | 19.30 | 189 |
| 2-1/4 | 18 | 190 | 43.0 | 29.00 | 284 | 23.40 | 229 |
| 2-1/2 | 20 | 232 | 53.0 | 34.00 | 334 | 28.00 | 273 |
| 2-3/4 | 22 | 281 | 64.0 | 41.00 | 401 | 33.0 | 322 |
| 3 | 24 | 331 | 75.0 | 48.00 | 473 | 38.00 | 371 |
| 3-1/2 | 28 | 445 | 100 | 76.20 | 748 | 52.20 | 562 |
| 4 | 32 | 575 | 130 | 91.20 | 895 | 68.50 | 671 |
| 4-1/2 | 36 | 720 | 162 | 107.30 | 1052 | 80.40 | 789 |
| 5 | 40 | 868 | 200 | 131.00 | 1285 | 98.20 | 964 |
| 51/2 | 44 | 955 | 215 | 157.00 | 1540 | 118.00 | 1158 |
| 6 | 48 | 1137 | 260 | 185.00 | 1815 | 139.00 | 1364 |
| 6-1/2 | 52 | 1342 | 300 | 212.00 | 2080 | 159.00 | 1560 |
| 7 | 56 | 1547 | 350 | 246.00 | 2408 | 184.00 | 1805 |
| 7-1/2 | 60 | 1784 | 400 | 265.00 | 2599 | 199.00 | 1952 |
| 8 | 64 | 2021 | 460 | 296.00 | 2903 | 222.00 | 2178 |
| 9 | 72 | 2598 | 590 | 365.00 | 3580 | 274.00 | 2688 |
| 10 | 80 | 3195 | 720 | 444.00 | 4355 | 333.00 | 3266.00 |
| 11 | 88 | 4170 | 940 | 519.00 | 5090 | 390.00 | 3825 |
| 12 | 96 | 4970 | 1120 | 606.00 | 5943 | 455.00 | 4463 |
| 13 | 104 | 5816 | 1310 | 695.00 | 6810 | 520.0 | 5096 |
| 14 | 112 | 6745 | 1520 | 783.00 | 7673 | 592.00 | 5800 |
| 15 | 120 | 7743 | 1750 | 924.00 | 9060 | 687.00 | 6730 |
| 16 | 128 | 8810 | 2000 | 1018.00 | 9980 | 779.00 | 7635 |
| 17 | 136 | 9945 | 2240 | 1122.00 | 11000 | 886.00 | 8682 |
| 18 | 144 | 11150 | 2520 | 1296.00 | 12700 | 1025.00 | 10045 |
Packing: WRAPPED IN HDPE CLOTH.
Delivery time: 25 days after deposit received.
Application:
Winch line in the ATV/SUV/offroad car
truck/pulling line in the truck
anchor line/dock line for the yacht/sailing boat.
Certificate:
