Introduction Of 30kn Wire Rope Tension Electric Wire Rope Single Drum Mining Winch
JTP series mining lifting winches are mainly used for mine floor shafts and inclined shaft lifting materials, personnel and equipment, can also be used for underground transportation and sinking bucket lifting.It can be single drum winch and double drum winch.zmwm10
Parameters Of 30kn Wire Rope Tension Electric Wire Rope Single Drum Mining Winch
| Model | Drum | Max. Wire rope tension KN | Wire Rope Max. Length m | Wire rope | Average lifting speed m/s | Electric motor | Dimension mm | Weight kg | |||||
| Diameter mm | Width mm | The first layer | The second layer | The third layer | Max Dia. mm | Breaking pull sum | Rotating speed r/min | Power KW | |||||
| JTPB-1.2*1.0 | 1200 | 1000 | 30 | 170 | 344 | 516 | 20 | 275 | 1.88-2.4 | 967 | 55-75 | 4658*2680*1450 | 10421 |
| JTPB-1.2*1.2 | 1200 | 1200 | 30 | 203 | 412 | 620 | 20 | 275 | 1.57-2.4 | 967 | 55-75 | 4458*2680*1450 | 9940 |
| JTPB-1.6*1.2 | 1600 | 1200 | 45 | 215 | 433 | 655 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5224*2800*1925 | 15195 |
| JTPB-1.6*1.5 | 1600 | 1500 | 45 | 269 | 542 | 819 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5524*2800*1925 | 15678 |
| JKB-2 X1.8P | 2000 | 1800 | 62 | 332 | 670 | 1013 | 32 | 558 | 2.5 | 735 | 200 | 6410*3234*2600 | 25560 |
| JKB-2 X1.5P | 2000 | 1500 | 62 | 277 | 557 | 842 | 32 | 558 | 2.5 | 735 | 200 | 6160*3234*2600 | 24780 |
| JKB-2.5X2P | 2500 | 2000 | 83 | 373 | 755 | 1143 | 40 | 747 | 3 | 740 | 315 | 6700*3610*2600 | 36998 |
| JKB-2.5X2.3P | 2500 | 2300 | 83 | 429 | 867 | 1312 | 40 | 747 | 3 | 740 | 320 | 7000*3610*2600 | 39620 |

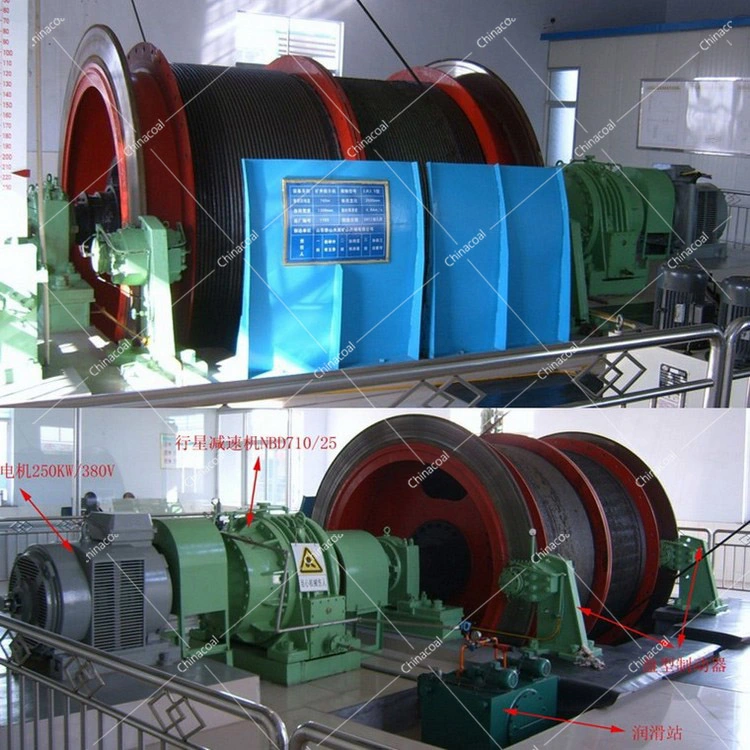

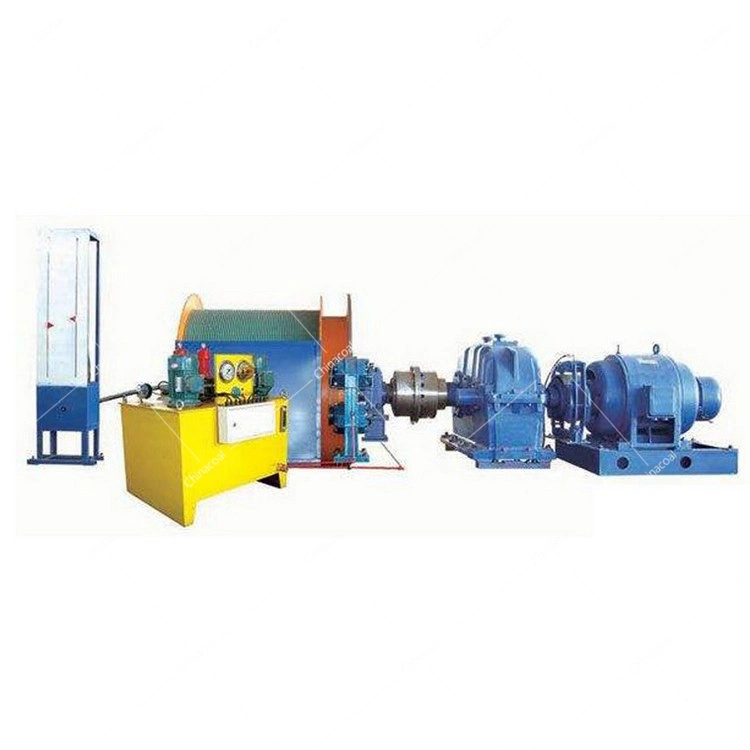

Photos Of 30kn Wire Rope Tension Electric Wire Rope Single Drum Mining Winch
