5.2m Working Height Manual Winch Elevating Lift

An economical alternative to electro-hydraulic lifts, this Manual Winch Elevating Work Platform is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand crank winch and then the user climbs a ladder to the platform. Built in safety features include a friction brake on the winch and outriggers that can be placed in an X pattern or rectangular. In addition, in case the cable is cut or snaps, a spring loaded mechanical stop engages as soon as tension is released from the cable, preventing a vertical drop.

The Manual Winch Elevating Work Platform is built tough to handle the day-to-day demands of industrial and commercial use. Getting those overhead jobs done requires a lift that is dependable. Designed to be handled and operated by one worker, it rolls easily from job to job and rolls easily through a standard doorway.

Specification
Model SP32SP46
Platform Height3200 mm4600mm
Platform Size550*600 mm550*600 mm
Load Capacity 125 kg125 kg
Stowed Length1200 mm1300 mm
Stowed Width750 mm800 mm
Stowed Height1980 mm2070 mm
Ground Clearance70 mm70 mm
Machine Weight145 kg190 kg
Operation ModeManual Manual
Move ModePush by manpowerPush by manpower
Casters6 in6 in

Highlight
  1. Exclusive built manual hand winch features heavy duty brake
  2. Large 550*600mm skid-resistant platform with toe boards and tubular guardrails
  3. Smooth rolling 6 in casters for easy movement
  4. Compact design allows easy movement of the unit through standard doorways

5.2m Working Height Manual Winch Elevating Lift

5.2m Working Height Manual Winch Elevating Lift

Our Company
As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.


5.2m Working Height Manual Winch Elevating Lift

5.2m Working Height Manual Winch Elevating Lift

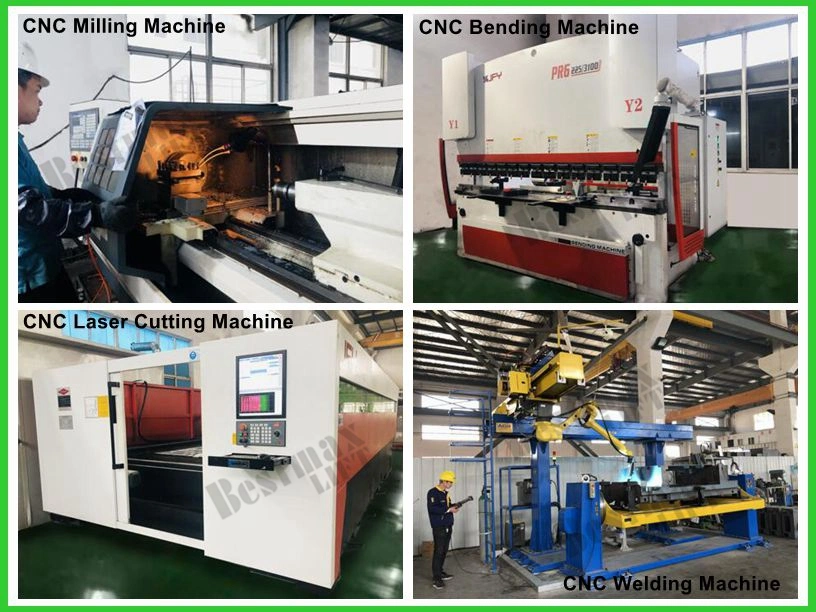

Factory Equipment
5.2m Working Height Manual Winch Elevating Lift


Clients & Exhibition
5.2m Working Height Manual Winch Elevating Lift

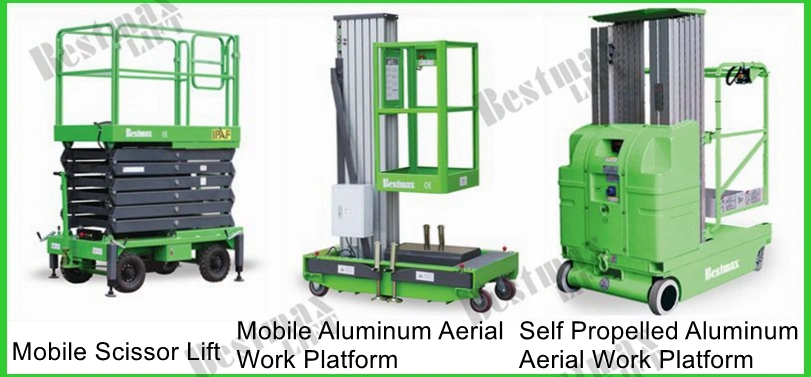

Other Related Products
5.2m Working Height Manual Winch Elevating Lift

Our Service

1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
